Break RoomSt. Isidore School
Assessing the Space
This 3d scan of the library was used as the basis of subsequent analyses to assess the effect of a variety of
treatments on the potential health impacts of the air.
Instructions For 3D Model: click-drag to rotate up or down, option-drag to zoom in or out
Modeling the Space

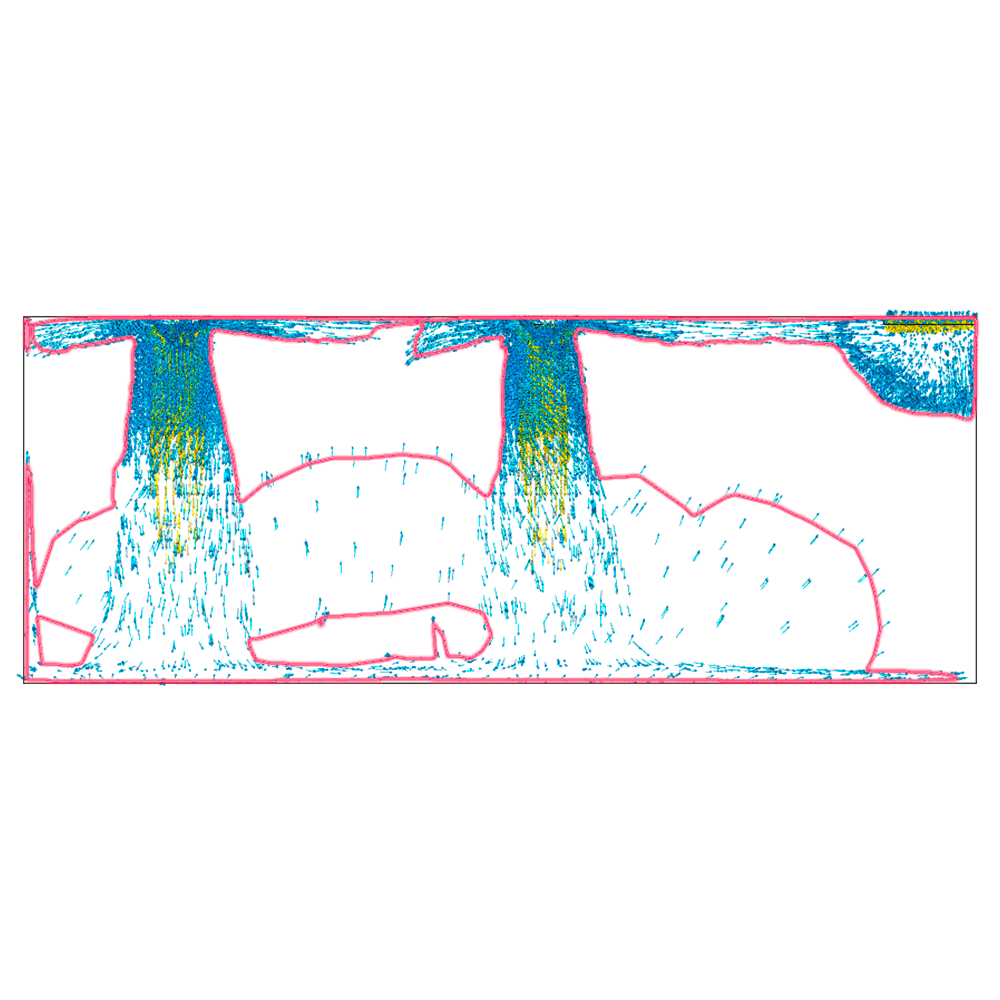

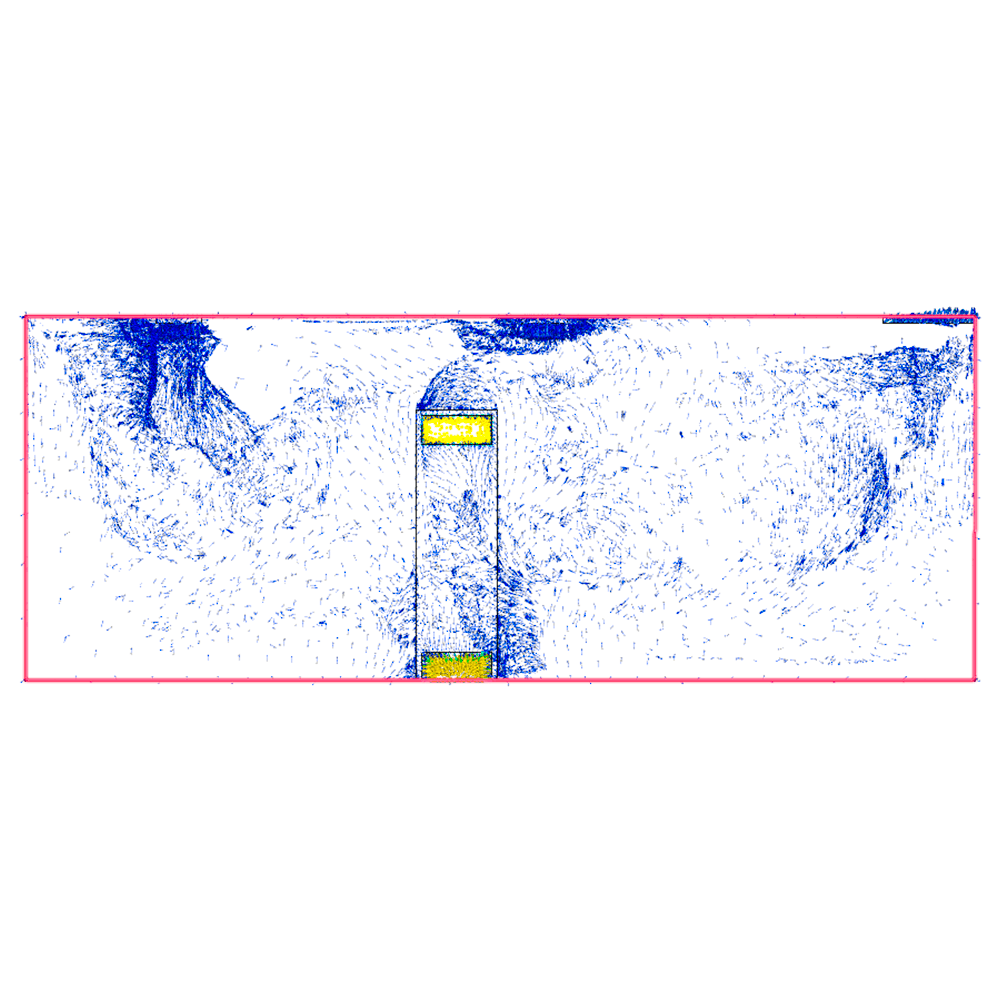

Below is a side by side of the air flow in the breakroom. On the before photo it shows multiple dead zones but with the addition of 1 Pro Unit there is adequate airflow in the room.
